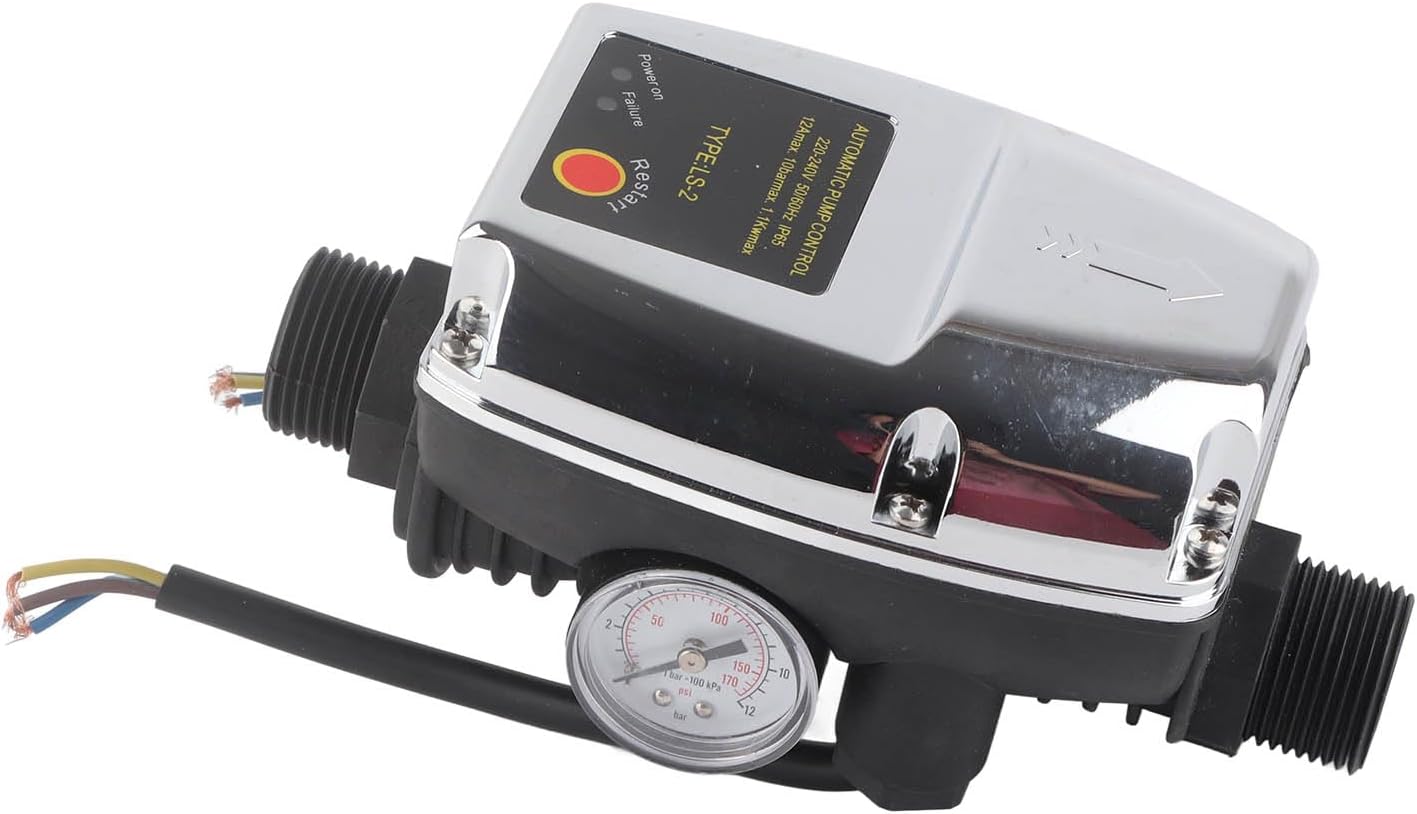

Automatic Water Pump Pressure Switch Controller - 110-230V Electronic Pressure Switch with G1 Thread and IP65 Protection - Automatic Control and Leakage Detection for Water

Item Type: Automatic Pump ControllerMaterial: PCRated Voltage: 110-230VMaximum Current: 12(6)AFrequency: 50HZ-60HZInterface Thread: G1inTake Off Pressure Setting: 1.5bar/2.2barMaximum Power: 1.1KW/2.2KWProtection Class: IP65Maximum Pressure: 10BarMaximum Working Temperature: 60℃Application: Self priming pump, jet pump, garden pump, clean water pump, etc.Package List：1 xAutomatic Pump Controller1 x Manual6 x Terminal6 x CoverNote:For electricity related maintenance and installation, make sure that the operator holds the qualification for electrical work and takes necessary power off and insulation protection measures.

• Automatic Operation: The electronic pressure switch automates pump start and stop sequences based on pipeline pressure changes to facilitate unmanned system management.
• Integrated Design: This unit replaces traditional pump control components including pressure switches, pressure tanks, and check valves for a more streamlined installation.
• Leakage Detection: This controller monitors the system for potential water leakage to ensure safer operation and prevent unnecessary pump cycling.
• Dry Run Protection: Built in water shortage protection stops the pump when insufficient flow is detected to prevent damage from dry running.
• Technical Specifications: Features a G1 thread connection, an integrated pressure gauge, and IP65 protection for operation within a 110 - 230V range.
